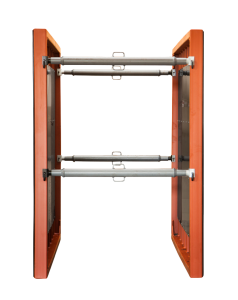

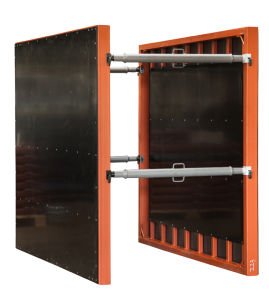

MEDIUM TYPE 2

Dimensions: 2.5 x 2 meters

Total weight: 375 kg

The bracing box is reversible i.e. it can be flipped and used at 1,5 or 2 meter depth, depending on how you place the spindles.

The box is available with spindles in 60-80 cm, 80-121 cm and 129-218 cm, depending on what the task in question requires. The working height below spindles is 80 cm.

Medium bracing box is ideal for varying tasks where you benefit from the flexibility of the box in terms of adjusting the digging depth and working width. It is an excavator box that, despite its size of 2.5 x 2 m, weighs only 375 kg and therefore can be handled with a mini digger.

Medium Type 2
Goals:2.5 x 2,0 m
Weight per page:172.5 kg
Total weight:375 kg
Calculated print:20 kn/m2



SpindlerInteriorExterior
60 – 8154 – 7565 – 86
80 – 12174 – 11585 – 126
129 – 218123 – 212134 – 223

All measurements are in cm.

Developed after EN 13331-1 + CE approved metal frame
