Measure: 2,5 x 2 m
Total Weight: 540 kg

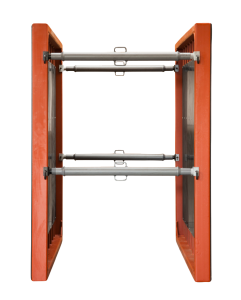

Stengers Small Trench Boxes can be flipped 90, 180 or 270 degrees making it reach 1,5 or 2 meter depth
Comes with standard struts 60-80 cm, 80-121 cm og 129-218 cm. Additional lengths are possible – please contact us for further information
Our boxes size and strength to weight ratio, combined with their versatility, makes them the perfect match with even very small excavators, working in cramped worksites or areas with poor accessibility
| Medium Type 3 | ||
| Measures: | 2,5 x 2,0 m | |
| Weight per side: | 255 kg | |
| Total weight: | 540 kg | |
| Pressure: | 27 kn/m2 | |
| Struts | Inside | Outside |
| 60 – 81 | 56 – 77 | 69 – 90 |
| 80 – 121 | 76 – 117 | 89 – 130 |
| 129 – 218 | 125 – 214 | 138 – 235 |
All measures are in cm
Developed following standard EN 13331-1 and a CE approved metal frame
